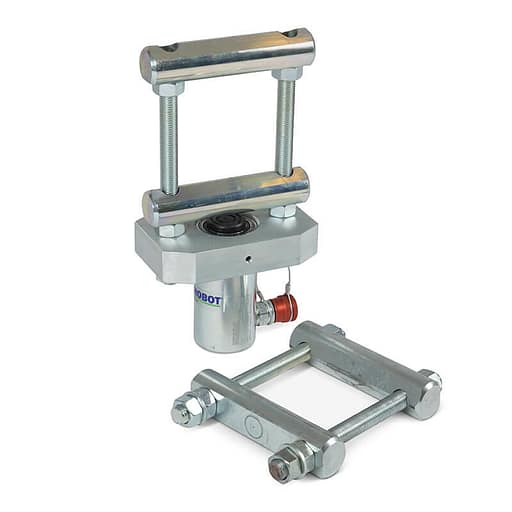

Pipe sealing tool TR-series

  • Stops leakage quickly and efficiently.
  • 11.3 ton (TR102) respectively 16.8 ton (TR154) capacity.

The clamping bars complete with rods and nuts can be locked in its position and left on the damaged pipe for as long as necessary. All that is required to seal further leaks are additional sets of clamping bars. The clamping bar set TR102-2 weighs 2.5 kg (5.5 lbs).

The pipe sealing tool must be connected to a separate manual pump (e.g. PHS70-300). The pipe sealing tool TR102 is also available in a kit, complete with pump, hose, couplings and carrying case (product name EHR104A).

Technical documentation

Operating instruction (65172)

Name

Steel quality

Max pipe diameter

Max wall thickness

TR102

Rm 320-520 N/mm²

52 mm

3 mm

TR154

Rm 320-520 N/mm²

95 mm

3 mm

Product list

Name

Item code

Capacity (sh tn)

Hydr. stroke (mm)

Cylinder

Yoke

Clamping bar set

Weight (kg)

TR102

40911

11.3 ton

54

CFC102

TR102-1

TR102-2

6.9 kg

TR154

40289

16.8 ton

101

CFC154

TR154-1

TR154-2

15 kg

Name

Item code

Capacity (sh tn)

Hydr. stroke (in)

Cylinder

Yoke

Clamping psi set

Weight (lbs)

TR102

40911

12.5

2.1

CFC102

TR102-1

TR102-2

15.2

TR154

40289

18.5

4

CFC154

TR154-1

TR154-2

33.1
