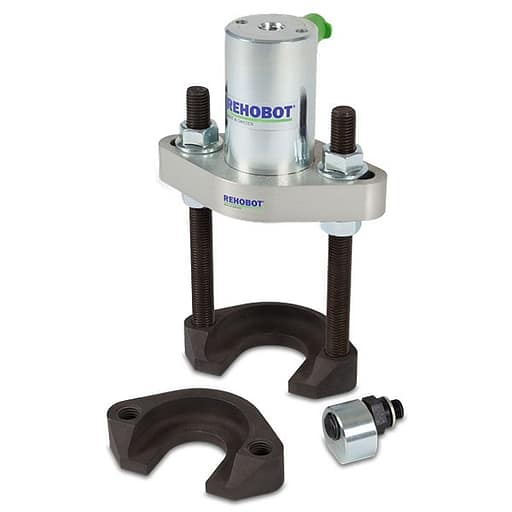

Ball joint extractor BEU-series

The hydraulic ball joint extractor BEU110 is a really amazing tool. It comes as standard with two different adapters (TD40 and TD50), which makes the tool well prepared for different jobs. In this configuration the tool will fit, where working space allows; Scania, Volvo, MAN, Mercedes, Renault, Iveco and DAF trucks and in most cases also buses from the same manufacturers.

  • Adaptable for many different tasks.
  • Fits most truck and bus brands on the market.
  • Long service life.
  • 10 ton capacity.

In order to cover other types and sizes of ball joints, the tool can easily be upgraded by adding more adapters - no need to have different tools for different jobs. The TD75 adapter is one to consider adding to your kit.

Besides that, the BEU110 has the same outstanding qualities as the BE57 - but with more power. Due to the use of hydraulic force, the BEU110 has a substantially longer service life than comparable mechanical tools. We strongly advise to use the tool together with a hydraulic pump from REHOBOT. Hydraulic pumps from REHOBOT are always equipped with a safety valve, the tool assembly is therefore protected from overload.

Swivel coupling ASE10 and REHOBOT quick coupling AQU8 are supplied together with the tool.

Technical documentation

Operating instruction (65502)

Product list

Name

Item code

Working press. MPa

Capacity kN (t)

Stroke mm

Stroke volume cm³

Weight kg

BEU110

47570

70

110 (11)

54

86

3.8

Name

Item code

Working press. psi

Capacity kN (sh tn)

Stroke in

Stroke volume in³

Weight lbs

BEU110

47570

10000

110 (12.1)

2.1

5.25

8.4
