Pull cylinders CPF

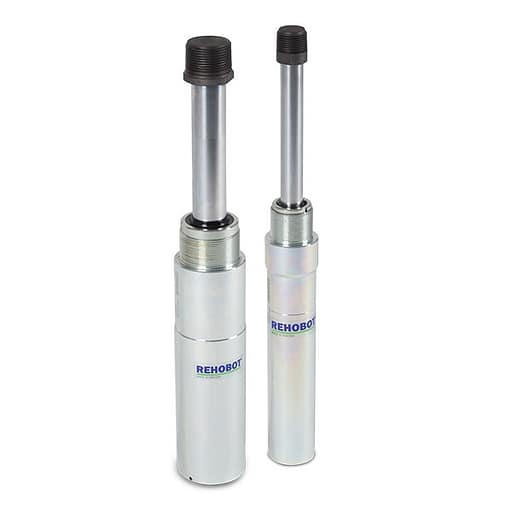

CPF cylinders are pull cylinders with 5 ton or 11 ton capacity. Both models are part of REHOBOT's push & pull kits and have threads in the piston pin and cylinder bottom for connection of accessories. CPF pull cylinders are used, for example, when reshaping welded structures.
- 5-11 ton capacity and 125-200 mm stroke length.
- Piston and cylinder case have threads as standard for fitting of accessories or mounting.
Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24). Please contact us for further information.
Technical documentation
Operating instruction (MA65173)
Dimensional drawing (DD27418-5)
Spare part list (SPCD1088)
Product list
Name | Item code | Working press. MPa | Capacity kN (t) | Stroke mm | Stroke volume cm³ | Diameter mm | Height mm | Weight kg |
CPF705 | 27300 | 70 | 45 (5) | 125 | 80 | 48 | 412 | 2.4 |
CPF709 | 27280 | 70 | 110 (11) | 127 | 199 | 70 | 440 | 5.9 |
CPF809 | 51730 | 70 | 110 (11) | 200 | 318 | 70 | 586 | 7.2 |
Name | Item code | Working press. psi | Capacity kN (sh tn) | Stroke in | Stroke volume in³ | Diameter in | Height in | Weight lbs |
CPF705 | 27300 | 10000 | 45 (5.1) | 4.9 | 4.9 | 1.9 | 16.2 | 5.3 |
CPF709 | 27280 | 10000 | 110 (12.4) | 5 | 12.1 | 2.8 | 17.3 | 13 |
CPF809 | 51730 | 10000 | 110 (12.4) | 7.9 | 19.4 | 2.8 | 23.1 | 15.9 |
