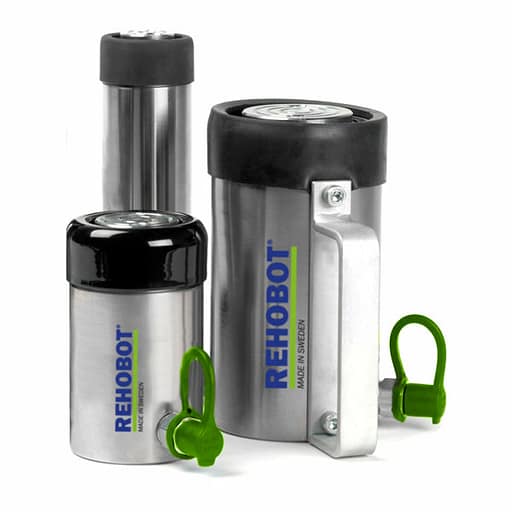

Single acting stainless steel push cylinders CSF
CSF-cylinders have the same excellent characteristics as the CX range and are designed to compensate oblique loads better than conventional cylinders. All CSF cylinders are equipped with spring return, wiper and quick coupling.
- 11 (13*) to 88 (100*) ton capacity and 25-200 mm stroke length.
- Manufactured in stainless steel with hard chromated piston.
- Collar mounting threads as standard.
Models in range CFS350 – CSF860 are equipped with carrying handles on the cylinder frame.
CSF = Stainless steel single acting push cylinders with spring return
Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24). Please contact us for further information.
* CSF-series is approved for working pressures up to 80 MPa (800 bar).
Technical documentation
Operating instruction (MA65098)
Dimensional drawing (DD45126-3)
Spare part lists
Product list
Name | Item code | Working press. MPa | Capacity kN (t) | Stroke mm | Stroke volume cm³ | Diameter mm | Height mm | Weight kg |
CSF110-50 | 45092 | 80 | 127 (13) | 50 | 80 | 58 | 134 | 2,2 |
CSF110-100 | 45094 | 80 | 127 (13) | 100 | 159 | 58 | 184 | 3,0 |
CSF110-150 | 45096 | 80 | 127 (13) | 150 | 238 | 58 | 234 | 3,5 |
CSF220-25 | 45098 | 80 | 249 (25) | 25 | 78 | 80 | 115 | 3,7 |
CSF220-50 | 45100 | 80 | 249 (25) | 50 | 156 | 80 | 140 | 4,3 |
CSF220-100 | 45102 | 80 | 249 (25) | 100 | 312 | 80 | 190 | 5,5 |
CSF220-150 | 45104 | 80 | 249 (25) | 150 | 467 | 80 | 240 | 6,9 |
CSF220-200 | 45106 | 80 | 249 (25) | 200 | 623 | 80 | 290 | 8,2 |
CSF350A-50 | 45108 | 80 | 402 (41) | 50 | 251 | 105 | 146 | 8,2 |
CSF350A-100 | 45110 | 80 | 402 (41) | 100 | 502 | 105 | 196 | 10,2 |
CSF350A-200 | 45112 | 80 | 402 (41) | 200 | 1005 | 105 | 296 | 15,6 |
CSF550A-50 | 45114 | 80 | 628 (64) | 50 | 393 | 130 | 160 | 13,5 |
CSF550A-100 | 45116 | 80 | 628 (64) | 100 | 785 | 130 | 210 | 16,7 |
CSF550A-200 | 45118 | 80 | 628 (64) | 200 | 1570 | 130 | 310 | 23,6 |
CSF860A-50 | 45120 | 80 | 982 (100) | 50 | 613 | 160 | 183 | 23,6 |
CSF860A-100 | 45122 | 80 | 982 (100) | 100 | 1227 | 160 | 233 | 28,9 |
CSF860A-200 | 45124 | 80 | 982 (100) | 200 | 2453 | 160 | 333 | 39,3 |
|
Name |
Item code |
Working press. psi |
Capacity kN (sh tn) |
Stroke in |
Stroke volume in³ |
Diameter in |
Height in |
Weight lbs |
|
CSF110-50 |
45092 |
11600 |
127 (14.3) |
2 |
4.9 |
2.3 |
5.3 |
4.9 |
|
CSF110-100 |
45094 |
11600 |
127 (14.3) |
3.9 |
9.7 |
2.3 |
7.2 |
6.6 |
|
CSF110-150 |
45096 |
11600 |
127 (14.3) |
5.9 |
14.5 |
2.3 |
9.2 |
7.7 |
|
CSF220-25 |
45098 |
11600 |
249 (28.0) |
1 |
4.8 |
3.1 |
4.5 |
8.2 |
|
CSF220-50 |
45100 |
11600 |
249 (28.0) |
2 |
9.5 |
3.1 |
5.5 |
9.5 |
|
CSF220-100 |
45102 |
11600 |
249 (28.0) |
3.9 |
19 |
3.1 |
7.5 |
12.1 |
|
CSF220-150 |
45104 |
11600 |
249 (28.0) |
5.9 |
28.5 |
3.1 |
9.4 |
15.2 |
|
CSF220-200 |
45106 |
11600 |
249 (28.0) |
7.9 |
38 |
3.1 |
11.4 |
18.1 |
|
CSF350A-50 |
45108 |
11600 |
402 (45.2) |
2 |
15.3 |
4.1 |
5.7 |
15.2 |
|
CSF350A-100 |
45110 |
11600 |
402 (45.2) |
3.9 |
30.6 |
4.1 |
7.7 |
22.5 |
|
CSF350A-200 |
45112 |
11600 |
402 (45.2) |
7.9 |
61.3 |
4.1 |
11.7 |
34.4 |
|
CSF550A-50 |
45114 |
11600 |
628 (70.6) |
2 |
24 |
5.1 |
6.3 |
29.8 |
|
CSF550A-100 |
45116 |
11600 |
628 (70.6) |
3.9 |
47.9 |
5.1 |
8.3 |
36.8 |
|
CSF550A-200 |
45118 |
11600 |
628 (70.6) |
7.9 |
95.8 |
5.1 |
12.2 |
52.0 |
|
CSF860A-50 |
45120 |
11600 |
982 (110.4) |
2 |
37.4 |
6.3 |
7.2 |
52.0 |
|
CSF860A-100 |
45122 |
11600 |
982 (110.4) |
3.9 |
74.9 |
6.3 |
9.2 |
63.7 |
|
CSF860A-200 |
45124 |
11600 |
982 (110.4) |
7.9 |
149.7 |
6.3 |
13.1 |
86.6 |
Accessories
Spare part lists
Spare part list CSF110-50, CSF110-100, CSF110-150 (SP65320)
Spare part list CSF220-25, CSF220-50, CSF220-100, CSF220-150, CSF220-200 (SP65321)
Spare part list CSF350A-50, CSF350A-100, CSF350A-200 (SP65640)
Spare part list CSF550A-50, CSF550A-100, CSF550A-200 (SP65641)
Spare part list CSF860A-50, CSF860A-100, CSF860A-200 (SP65642)
