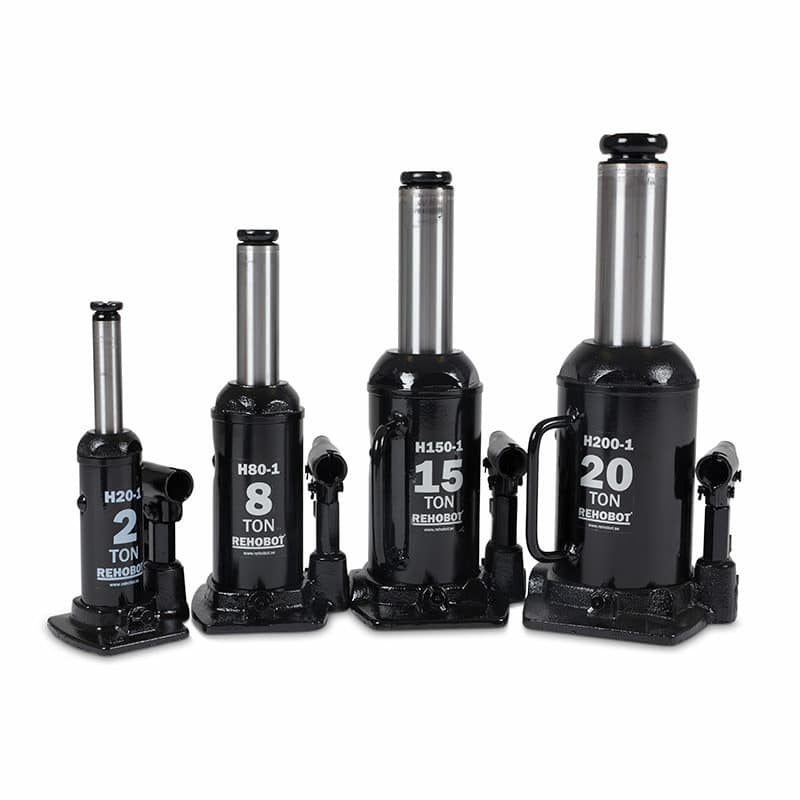

Hand jacks H series
REHOBOT hand jacks include a wide range of standard models as well as specialised jacks for different applications.
Request for quotation
Product description
REHOBOT hand jacks include a wide range of standard models as well as specialised jacks for different applications.
All REHOBOT's hand jacks are equipped with a safety valve that prevents overloading. The jacks are service-friendly with all wear parts easily replaceable.
- Low manual pumping force facilitates use in awkward positions.
- Relief valve allowing easily controllable lowering of the load with safety and precision.
- Strainer in the oil container protects against contamination.
Technical documentation
Request for quotation
Product list
| Name | Art.nr | Capacity tonnes | Min. height mm | Max. height mm | Stroke length mm | Weight kg |
| H60-1 | 43505 | 6 | 195 | 392 | 127 | 5 |
| H150-1 | 43509 | 15 | 225 | 435 | 130 | 9.6 |
| Name | Item code | Capacity sh tn | Min. height in | Max. height in | Stroke in | Weight lbs |
| H60-1 | 43505 | 6.6 | 7.7 | 15.4 | 5 | 11 |
| H150-1 | 43509 | 16.5 | 8.9 | 17.1 | 5 | 21.2 |
