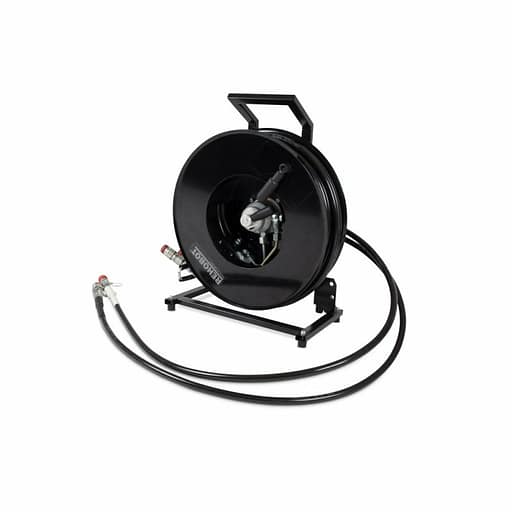

Hose reels (single) SVD
The REHOBOT hose reel type SVD1210L/R and SVD1215L/R come complete with 2 pcs of twin hose (2 x 10m or 2 x 15m). The two hose reels are fixed to a light weight carrying frame.
- 10 m or 15 m twin hose
- Fits directly onto PMP-series Mini pumps
- Light weight carrying frame
- Clearly marked pressure hose ends
Operating instruction
The twin hoses are at each end provided with quick couplings male and female to be connected with the corresponding couplings on the rescue tool. The pressure hose ends are clearly marked to prevent mix-up. The couplings (male/female) have metal dust covers. The hose can independently be coiled and uncoiled under pressure.
Capacity
The hose reel have connection hoses with quick couplings male and female to be connected directly to the mini pump. Length of connection hoses is 1.5 m.
Please note that there are left and right hose reel designs - depending on which side of the mini pump frame it is suppose to be attached to.
Product list
Name | Item code | Max. working press. (bar) | Hoses (m) | Weight (kg) |
SVD1210L | 47000 | 800 | 2 x 10 m | 18 |
SVD1210R | 47002 | 800 | 2 x 10 m | 18 |
SVD1215L | 47001 | 800 | 2 x 15 m | 21 |
SVD1215R | 47003 | 800 | 2 x 15 m | 21 |
Name | Item code | Max. working press. (psi) | Hoses (yd) | Weight (lbs) |
SVD1210L | 47000 | 11600 | 2x 10.9 yd | 39.7 |
SVD1210R | 47002 | 11600 | 2x 10.9 yd | 39.7 |
SVD1215L | 47001 | 11600 | 2x 16.4 yd | 46.3 |
SVD1215R | 47003 | 11600 | 2x 16.4 yd | 46.3 |
