Single acting high tonnage push cylinders CX

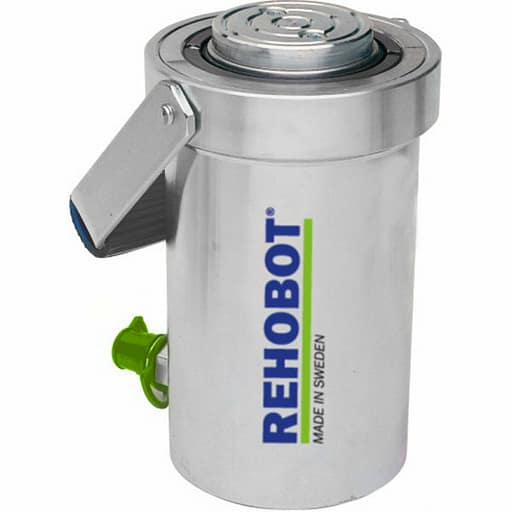

CX push cylinder with 220 (256*) ton lifting capacity. It is specifically designed to withstand off-center loads and is equipped with extra large, unique, piston guides.
- 220 (256*) ton capacity and 100 mm stroke length.
CX = single acting push cylinder with load return
Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24). Please contact us for further information.
* CX-series is approved for working pressures up to 80 MPa (800 bar).
Technical documentation
Operating instruction (MA65098)
Dimensional drawing (DD49461)
Spare part list (SP65533)
Product list
Name | Item code | Working press. MPa | Capacity kN (t) | Stroke mm | Stroke volume cm³ | Diameter mm | Height mm | Weight kg |
CX250B-100 | 49460 | 80 | 2513 (256) | 100 | 3140 | 250 | 285 | 100 |
Name | Item code | Working press. psi | Capacity kN (sh tn) | Stroke in | Stroke volume in³ | Diameter in | Height in | Weight lbs |
CX250B-100 | 49460 | 11600 | 2513 (282.5) | 3.9 | 191.6 | 9.8 | 11.2 | 220.5 |
