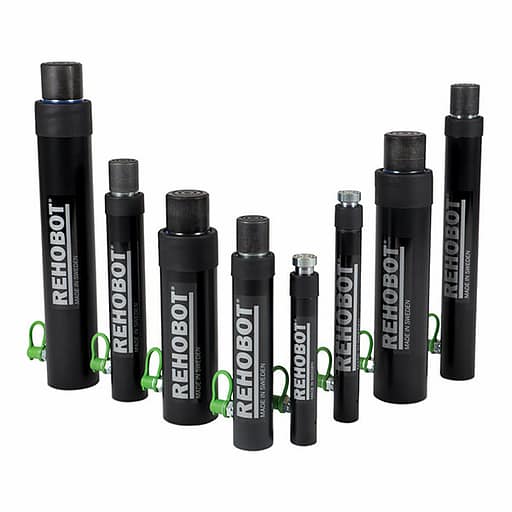

Single acting push cylinders Blackline CF BL
Our Blackline push cylinders are adapted for harsh environments with high risk of corrosion and condensation. They are built upon our successful CF-series and can be used for a variety of purposes.
These robust cylinders are your best choice for harsh environments due to the latest technology. Black is the new green: with more eco-friendly manufacturing process the Blackline cylinders do not only resist the tough environment, they also preserve it without compromising superior quality.
Features of the Blackline series
- Increased corrision resistance
- Increased durability
- Low maintenance
- All-round
- Wide varity of accessories
- High strength alloy steel
- 5 to 24 ton capacity
- 127-300 mm stroke length
- Spring return
- Temperature range: -20°C to +50°C
Blackline push cylinders are equipped with a quick coupling, and can easily be connected to your regular hydraulic pump. They are prepared for accessories to be connected at the piston top or at the bottom of the cylinder.
Some of the applications where Blackline push cylinders are suitable for use:
- Scraping and demolition
- Mining industry
- Marine and off-shore
- Oil and gas
- Car maintenance workshops
- Industrial applications
CF BL = Single acting push cylinders with spring return and increased protection against corrosion
Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24). Please contact us for further information.
Technical documentation
Operating instruction (MA65098)
Data sheet (DS65664_EN)
Dimensional drawing (DD24975-5)
Spare part lists
Product list
Name | Item code | Working press. MPa | Capacity kN (t) | Stroke mm | Stroke volume cm³ | Diameter mm | Height mm | Weight kg |
CF104BL | 51184 | 70 | 49 (5) | 127 | 90 | 37.5 | 267 | 1.7 |
CF204BL | 51185 | 70 | 49 (5) | 200 | 142 | 37.5 | 340 | 2.4 |
CF110BL | 51188 | 70 | 111 (11) | 150 | 239 | 56.5 | 321 | 4.7 |
CF210BL | 51189 | 70 | 111 (11) | 200 | 318 | 56.5 | 372 | 5.5 |
CF310BL | 51190 | 70 | 111 (11) | 300 | 477 | 56.5 | 474 | 7.0 |
CF120BL | 51194 | 70 | 232 (24) | 127 | 422 | 84 | 337 | 10.2 |
CF220BL | 51195 | 70 | 232 (24) | 200 | 664 | 84 | 410 | 12.4 |
CF320BL | 51196 | 70 | 232 (24) | 300 | 996 | 84 | 510 | 16.0 |
Name | Item code | Working press. psi | Capacity kN (sh tn) | Stroke in | Stroke volume in³ | Diameter in | Height in | Weight lbs |
CF104BL | 51184 | 10000 | 49 (5.5) | 5.0 | 5.5 | 1.5 | 10.5 | 3.7 |
CF204BL | 51185 | 10000 | 49 (5.5) | 7.9 | 8.7 | 1.5 | 13.4 | 5.3 |
CF110BL | 51188 | 10000 | 111 (12.5) | 5.9 | 14.6 | 2.2 | 12.6 | 10.4 |
CF210BL | 51189 | 10000 | 111 (12.5) | 7.9 | 19.4 | 2.2 | 14.6 | 12.1 |
CF310BL | 51190 | 10000 | 111 (12.5) | 11.8 | 29.1 | 2.2 | 18.7 | 15.4 |
CF120BL | 51194 | 10000 | 232 (26.1) | 5.0 | 25.8 | 3.3 | 13.3 | 22.5 |
CF220BL | 51195 | 10000 | 232 (26.1) | 7.9 | 40.5 | 3.3 | 16.1 | 27.3 |
CF320BL | 51196 | 10000 | 232 (26.1) | 11.8 | 60.8 | 3.3 | 20.1 | 35.3 |
