Petrol-driven hydraulic pumps PMP

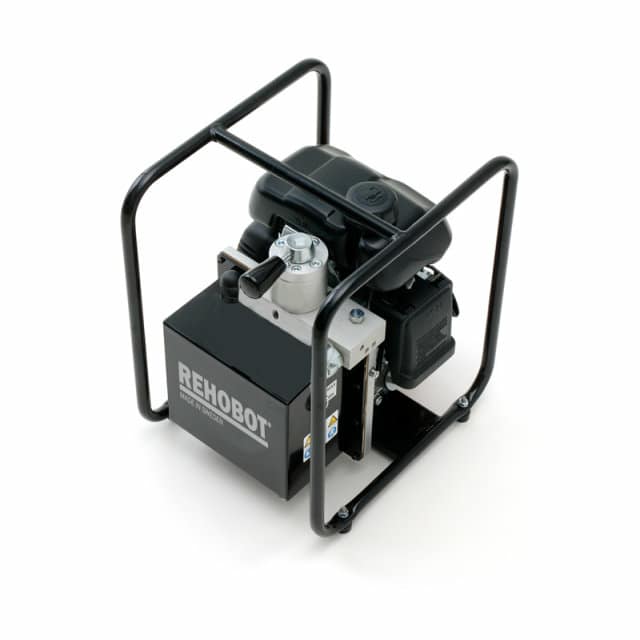

Petrol driven hydraulic pump

Petrol-driven hydraulic pumps with high oil flow. Petrol engine driven pumps are a good option when you need a mobile pump that does not require an external power source, for example on construction sites or shipyards.

Request for quotation

Product description

Petrol-driven hydraulic pumps with high oil flow. Petrol engine driven pumps are a good option when you need a mobile pump that does not require an external power source, for example on construction sites or shipyards.

The PMP series engines are single-cylinder, four-stroke engines of 1.8 kW.

  • Two-stage petrol-driven hydraulic pumps with automatic switching between low and high pressure.
  • Equipped with protective frame and rubber feet.
  • Open design for good cooling during operation.
  • Can be equipped with hose reels and other accessories.

The MLS models is intended for single-acting tools.MLD models is designed for double-acting tools.

Pressure gaugeFor PMP pumps, the AMT801 pressure gauge is recommended. No pressure gauge adapter is needed, it is connected directly to the pump.

ATTENTION! Quick couplings are not included. These must be ordered separately!

Technical documentation

Instructions for use (MA65528)

EC declaration of conformity (CE60692)

Request for quotation

Contact form

Product list

Name Art.nr Working pressure MPa Eff. oil volume cm³ Cap. cm³/min low pressure Cap. cm³/min high pressure Engine power kW Weight kg
PMP70-2100MLS 46248 70 2100 2350 550 1.8 15.4
PMP70-2100MLD 46249 70 2100 2350 550 1.8 16.9
Name Item code Working pressure. psi Eff. oil vol. in³ Cap. in³/min low Cap. in³/min high Motor power kW Weight lbs
PMP70-2100MLS 46248 10000 128.2 143.4 33.6 1.8 34
PMP70-2100MLD 46249 10000 128.2 143.4 33.6 1.8 37.3
