Pressure gauges AMP / AMT / AMZ / TX
Pressure gauges allow a visualisation of the generated force or pressure which is generated by a pump. This prevents accidental overloading and contributes to a longer lifetime of your hydraulic system.
Request for quotation
Product description
Pressure gauges allow a visualisation of the generated force or pressure which is generated by a pump. This prevents accidental overloading and contributes to a longer lifetime of your hydraulic system.
- REHOBOT's manometers are available in different scales bla. MPa, psi, kN or tonnes.
REHOBOT also provides fluid damped pressure gauges (AMT801 & TX104). These models are recommended when there is a risk of sudden pressure drops.
Pressure gauges with customised scales can be offered on request.
AMT801 and TX104 - these gauges mount directly to PHS series hand pumps. Pressure gauge adapter and seal not required.
Other pressure gauges are supplied without the required seal. The column "Seal" describes the part number of the appropriate seal which is ordered separately.
Technical documentation
Request for quotation
Product list

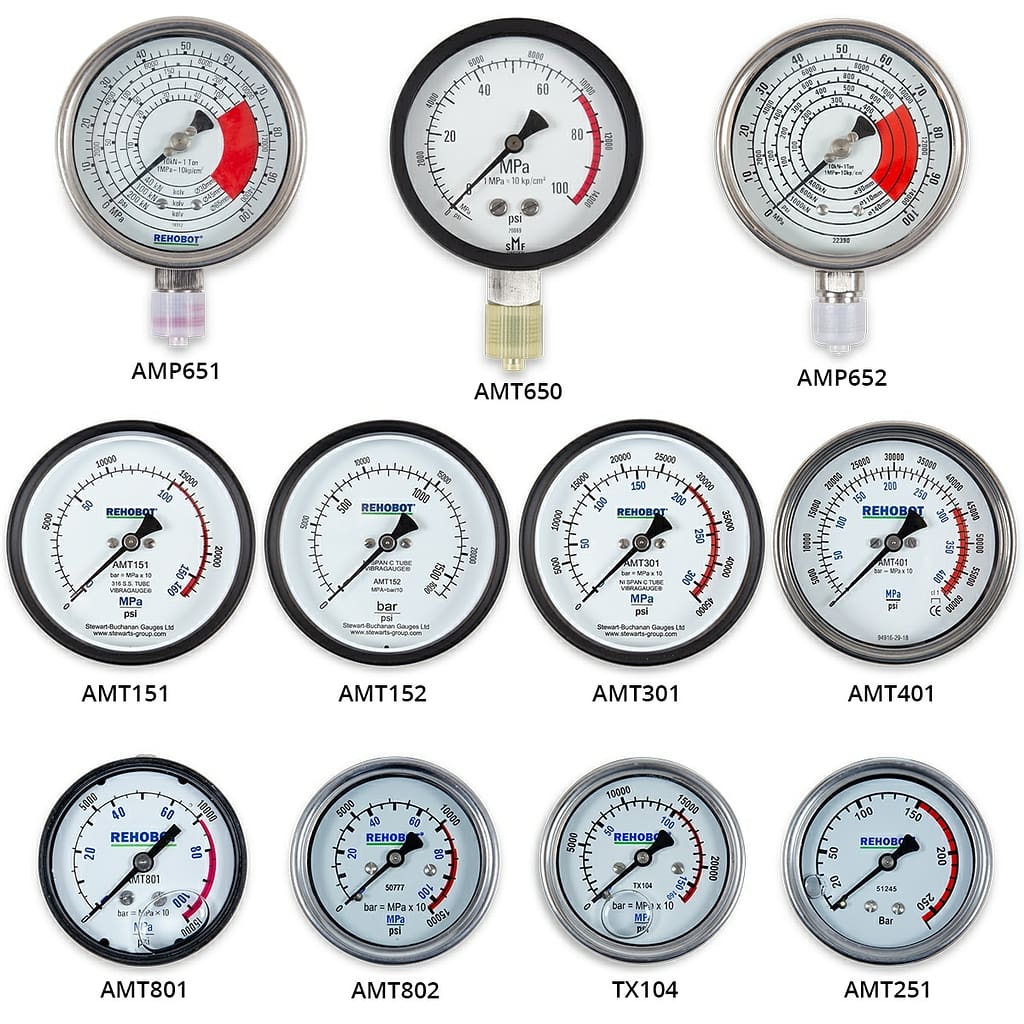

| Name | Art.nr | Class | Measurement area | Scale division | Thread | Sealing |
| AMP651 | 19312 | 1.6 | 40kN, 100kN, 200kN, 70MPa, 10000psi | 2kN, 10kN, 10kN, 2MPa, 500psi | G 1/2″ | 01044530 |
| AMP652 | 22390 | 1.6 | 400kN, 600kN, 1000kN, 70MPa, 10000psi | 20kN, 50kN, 50kN, 2MPa, 500psi | G 1/2″ | 01044530 |
| AMT650 | 20069 | 1.6 | 100MPa, 14000 psi | 2MPa, 500psi | G 1/2″ | 01044530 |
| AMT151 | 45036 | 1 | 160 MPa, 23000 psi | 5 MPa, 500psi | M20x1.5 | 01041940 |
| AMT301 | 45037 | 1 | 310 MPa, 45000 psi | 10 MPa, 1000 psi | M20x1.5 | 01041940 |
| AMT401 | 51450 | 1 | 410 MPa, 60000 psi | 10 MPa, 1000 psi | M20x1.5 | 01041940 |
| AMT801 | 44474 | 1.6 | 100 MPa, 15000 psi | 5 MPa, 1000 psi | G 1/4″ | – |
| AMT802 | 50777 | 2.5 | 100 MPa, 15000 psi | 5 MPa, 1000 psi | G 1/4″ | – |
| AMZ50 | 21223 | 1.6 | 800 kN, 80 tonnes | 20 kN | G 1/2″ | 01044530 |
| AMZ250 | 42325 | 1.6 | 24 tonnes, 700 bar | 1 tonne, 20 bar | G 1/2″ | 01044530 |
| TX102 | 38831300 | 1 | 4 tonnes, 10 tonnes, 600 bar | 1 tonne, 1 tonne, 50 bar | G 3/8″ | 01044540 |
| TX104 | 38831500 | 2.5 | 160 MPa, 20000 psi | 5 MPa, 1000 psi | G 1/4″ | – |
