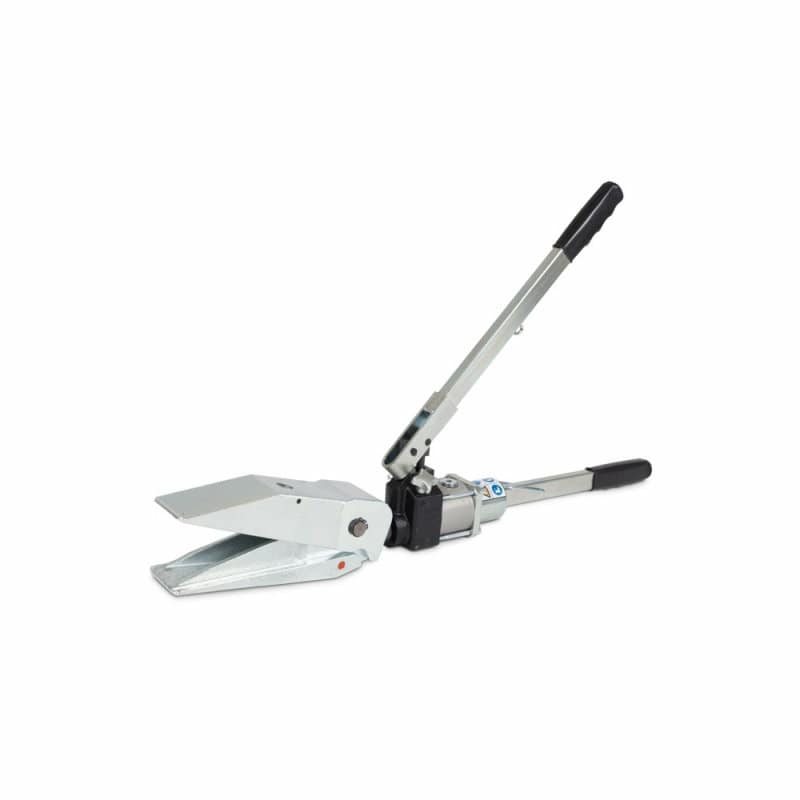

Hand-operated spreader HS
The HS20-120 manual spreader is a very good choice when high performance tools that are easy to use are required. Especially when there is no access to external power sources.
Request for quotation
Product description
The HS20-120 manual spreader is a very good choice when high performance tools that are easy to use are required. Especially when there is no access to external power sources.
- Max. spreading force 4.5 tonnes.
- Flexible and easy to use.
- Single-acting tool with integrated hand pump.
- The spreader can be rotated through 360°.
- Inbuilt safety valve.
The spreader unit (CS20-120) can be purchased separately. It can be connected, for example, to a manual pump such as PHS80-300 or PHS80-2400R.
Technical documentation
Request for quotation
Product list
| Name | Art.nr | Spreading force on the tips (kN) | Spreading force at centre (kN) | Eff. oil volume cm³ | Max. opening (mm) | Weight (kg) |
| HS20-120 | 38911900 | 20 kN | 44 kN | – | 120 mm | 8.8 kg |
| CS20-120 | 38362900 | 20 kN | 44 kN | 33 cm³ | 120 mm | 5.4 kg |
| Name of the organisation | Item code | Spreading force at tips (kN) | Spreading force in centre(kN) | Eff. oil vol. in³ | Max. opening (in) | Weight (lbs) |
| HS20-120 | 38911900 | 20 kN | 44 kN | – | 4.7 in | 19.4 lbs |
| CS20-120 | 38362900 | 20 kN | 44 kN | 2.0 in³ | 4.7 in | 11.9 lbs |
Products in focus
Read moreCompact hollow jack PHCH
REHOBOT compact jacks are true all-round jacks. PHCH hollow jacks are available in a range of designs with different characteristics such as capacity, ...
- Read more
Solid piston compact jack PHCT
REHOBOT compact jacks are true all-round jacks. The PHCT jacks are available in a range of designs with different characteristics such as capacity, stroke...
- Read more

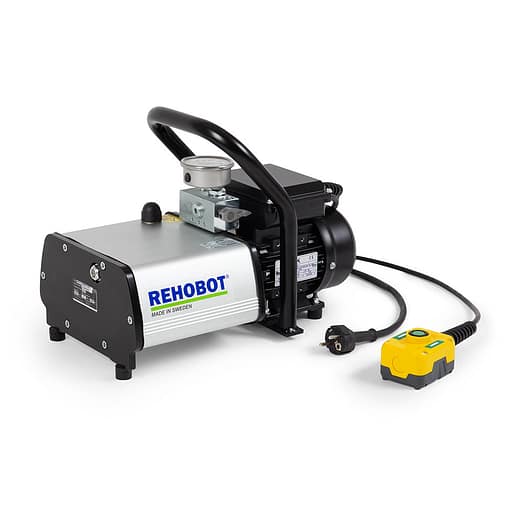

Electric motor driven hydraulic pumps PME / Torque wrench
REHOBOT's electric motor-driven hydraulic pumps for torque pulling are reliable, flexible and easy to use. The pumps are well suited for use...
- Read more

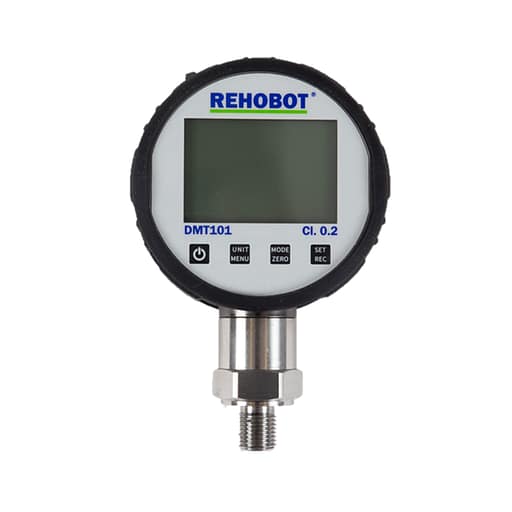

Digital pressure gauge DMT
Pressure measurement is one of the most common tasks in the process and production industry. A digital pressure gauge has several strengths, such as logging...
- Read more

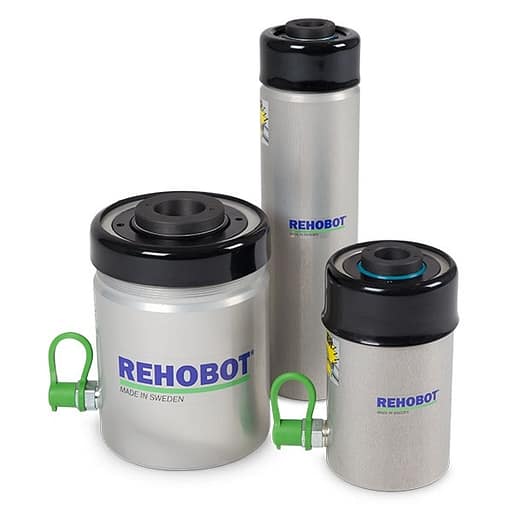

Single acting hollow cylinders aluminium CHFA
